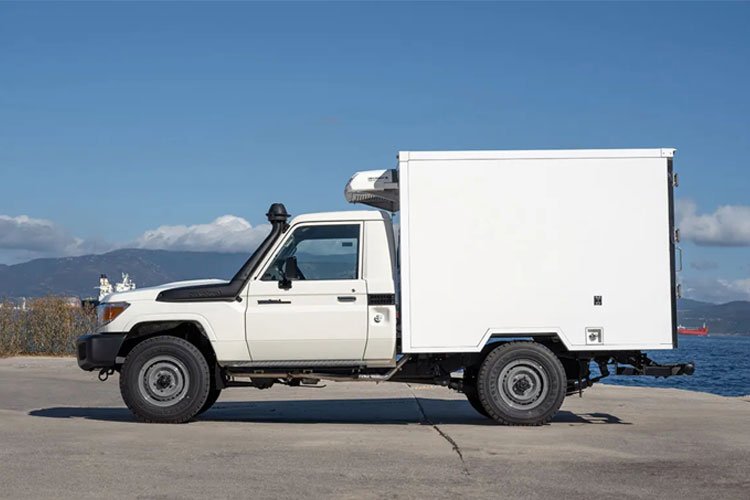

Best Refrigerated and Freezer Boxes for Pickup Trucks
We are manufacturer of pickup truck refrigerated boxes. We manufacture pickup truck refrigerators. They can be used to transport perishable medical items, they can maintain a temperature of -20°C to 5°C and have an internal cubic capacity of 4.2m³. The panels are fiberglass PU panels. You can customize them to your needs and choose from a wide range of accessories.
Models supported: GMC (Sierra 1500, Canyon), RAM (1500, 2500/3500), Chevrolet (Silverado 1500, Colorado), Ford (F-150, Ranger).
These are the main supported models; we support all pickup truck models.
Characteristics
Our pickup truck refrigerated box uses a one-piece FRP panel and is available in lengths from 2 to 3.8 meters. It offers excellent insulation for refrigerated and frozen transportation. The use of fiberglass for the outer skin and XPS for the core improves sealing and insulation. It is designed for temperature-sensitive cargo.
- Various flooring options: non-slip, T-shape, Great Wall, etc.
- You can set the core thickness from 50-120 mm for different refrigeration needs.
- Reinforced structures use wood, steel and composite materials.
- Up to 15 different kits are available.
- You can choose from different rear doors, double doors, single doors, side doors and more.
- Concealed handles, stainless steel door lock hinges.
- Energy efficient stand-alone refrigeration unit with generator.
Advantage of Pickup Truck Refrigerated Box
CarbodyGroup’s Pickup Truck Refrigerated Box Body is the best choice for refrigerated storage. It has a lot of great features.
High-performance FRP panels make it all possible. They are strong, crush, scratch, and cut resistant. They won’t break or fold easily. They absorb light and are UV-protected. XPS / PU foam is a lightweight, non-absorbent material. It improves the fuel efficiency of pickup trucks.
XPS foam has very good thermal insulation performance with a thermal conductivity of 0.028-0.034w/(m.K), and PU foam has a thermal conductivity of 0.023w/(m.K), which has a high thermal resistance and is suitable for high efficiency thermal insulation, and it can be used as a substitute for the traditional aluminum sheet steel panels.

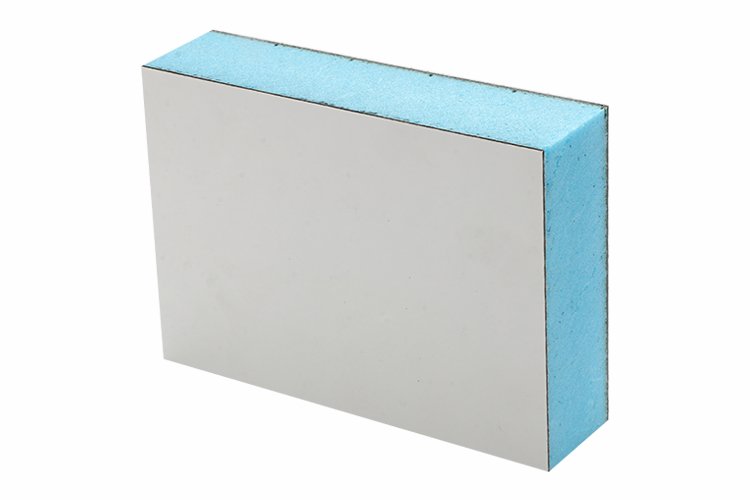

XPS foam fiberglass composite panel
- Total Thickness: 54.0mm. (Customized)
- Upper Surface Layer: 1.2mm FRP sheet with PET film.
- Core Layer: 40kg/m³ XPS foam.
- Lower Surface Layer: 1.2mm CFRT sheet with PET film.
- Area Weight: 6.4kg/m².
- Applications: Pickup truck refrigerated box

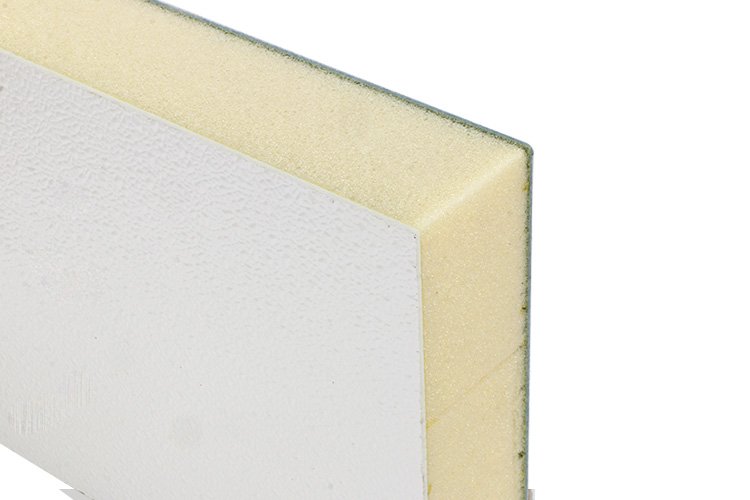

PU foam fiberglass composite panel
- Total Thickness: 60.0mm (Customized:10~150mm)
- Upper Skin: 2.0mm Embossed FRP sheet (Customized:0.7~5.0mm)
- Core Material: PU(Polyurethane) foam
- Foam Density: 40kg/m³
- Lower Skin: 2.0mm FRP sheet. (Customized:0.7~5.0mm)
- Area Weight: 7.9kg/m²
Below is a comparison of the characteristics of commonly used materials for refrigerated pickup truck bodies to help you easily choose the most suitable option:
| Material Name | Key Features |
| XPS Foam FRP Sandwich Panel | Superior moisture resistance, excellent thermal stability, year-round temperature control, durable and anti-aging, ideal for long-term use. |
| PU Foam FRP Sandwich Panel | Exceptional thermal insulation, significantly reduces energy consumption, lightweight design, easy installation, strong structure, and impact-resistant. |
| PVC Foam FRP Sandwich Panel | High strength, crush-resistant, waterproof and corrosion-resistant, dimensionally stable, suitable for harsh environments, and long-lasting. |
Our pickup truck refrigerated box can be installed in half a day by only 1-2 people after 20 years of work.
- Good air circulation
- Good insulation performance
- Long service life
- Improved fuel efficiency
- Extremely lightweight
- Easy to install.
- Extremely tough
- 100% customized.
Customize Your Pickup Truck Refrigerated Box
With customization options and expert manufacturing processes, we are committed to providing our customers with efficient, reliable and durable pickup truck refrigerated box solutions.
We offer a wide range of customized solutions
- Non-slip flooring: wear-resistant and robust;
- T-shaped aluminum pipe floor: stable, drainage and ventilation.
- Stainless steel door frame and hinges: corrosion resistance and long service life;
- Impact rubber block: effectively absorbs collision energy;
- Refrigeration unit: adjustable temperature control range;
- LED spotlight: improve visibility at night;
- Cargo track: used to fix the cargo;
- Skirting, roll-up door and bumper: provide additional protection and convenience;
- Subframe: made of aluminum alloy or steel;
- Pallet: customized size and layout according to cargo requirements.
We use advanced technology and services, including:
- CNC cutting: cutting materials with high precision;
- Sheet metal processing: to manufacture high-quality parts;
- Laser welding: providing high-precision connections;
- Aluminum extrusion: to produce lightweight and high-strength structural components.
